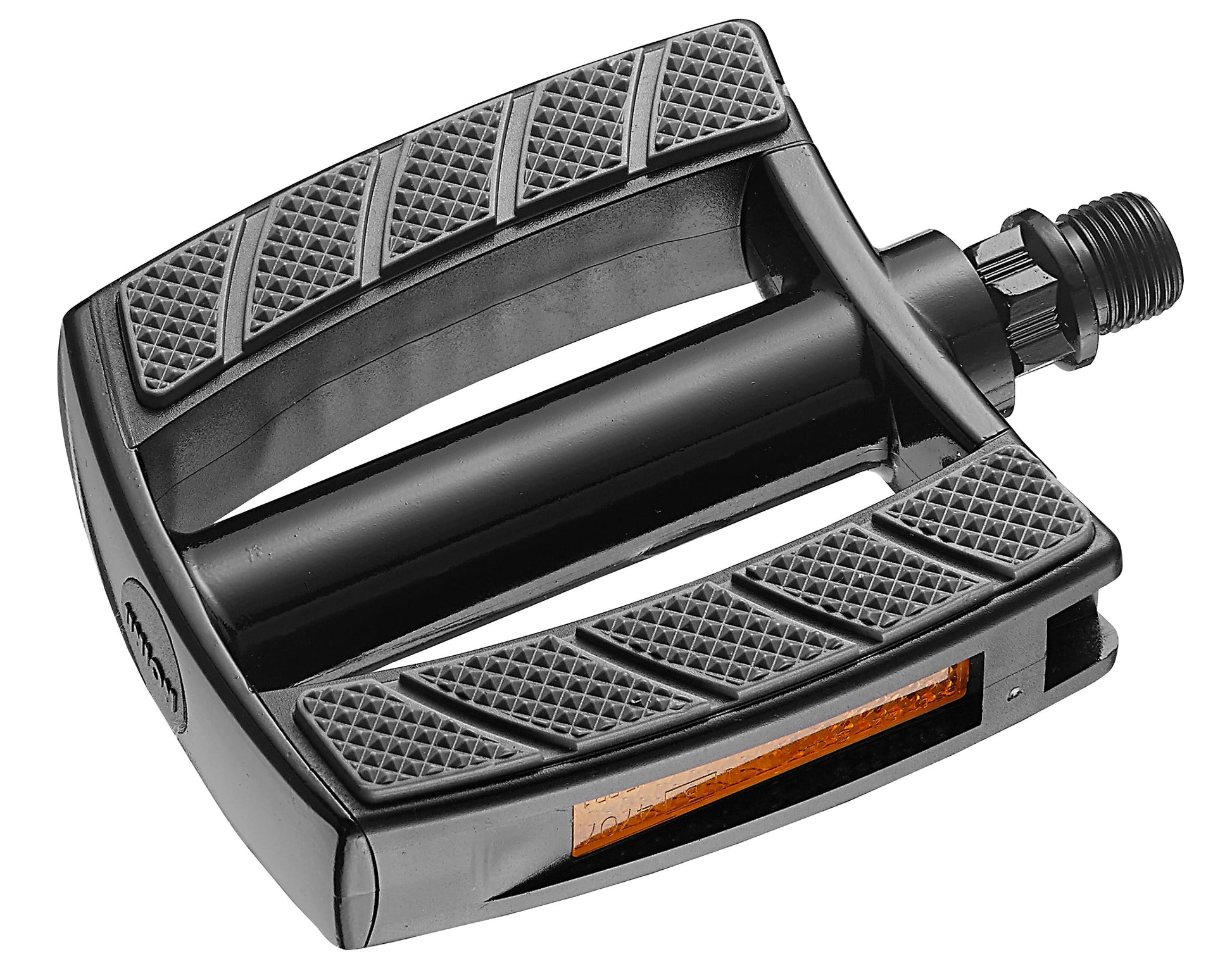

Marwi pedals for e-bike SP-828 aluminum sandblock - black (workshop packaging)

A bicycle pedal with an extra-large anti-slip insert on both sides and a robust aluminum axle housing, specially designed for use on electric bikes. It can also be used on city, trekking, and hybrid bikes.

The "lightweight" ball bearing system provides significant savings in weight and height

The pedals are equipped with integrated approved reflectors on both sides and a closed bearing system . TECHNICAL INFORMATION Pedal type "3 component pedal", which consists of:

a cast aluminum axle housing, polished to a high gloss or black (electro-dyed black)

the pedal cage is made of black polypropylene

The extra-large "anti-slip" insert in the cage is made of gray TPE (thermoplastic elastomer). Ball bearing

Adjustable and lightweight ball bearing system, according to the "ball & cone" principle, on both sides

With 13 x 3/32" ball bearings on both sides Axle

Boron steel, heat treated to 75HRA (+/-3)

With 9/16"- 20 TPI thread Reflectors

Integrated into the pedal cage

Approved according to BS, JIS, TPP, as well as the German StVZO standards Dimensions

111* x 90 x 27 mm (*length x width x height)

*length = maximum length of pedal mounted (part that protrudes beyond the crankset) Weight

516 gr/per set Standard

The pedal complies with the ISO standard.

ISO 4210-8: "Bicycles - Safety requirements for bicycles - Pedal and crankset test methods"
